SENGATE Magnetic Sensor MS-68: A Safety Protection Solution for Your Home

What is the SENGATE Magnetic Sensor MS-68?

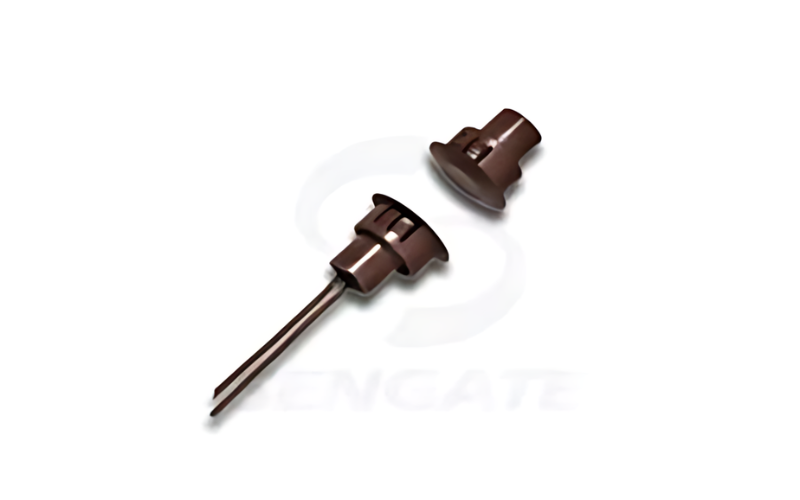

The SENGATE Magnetic Sensor MS-68 is an intelligent electronic device used to accurately detect the open/close status of doors, windows, or other locations that require protection.

Operating Principle
The MS-68 magnetic sensor operates based on the principle of magnetic induction. Inside the switch are two reed contacts; when a magnet approaches, they attract each other and close the circuit, sending a signal to the control system. When the door opens and the magnet moves away from the reed contacts, the magnetic force decreases, the two reeds separate, and the circuit opens.

Key Features

• Compact size, easy installation: With a diameter of only 19 mm, it can be easily concealed inside door frames, windows, or cabinets, enhancing the aesthetics of your living space.

• High durability: Made from high-quality materials, it operates stably over long periods and can withstand impacts and environmental factors.

• Flexible operating distance: With a maximum operating gap of up to 20 mm, the MS-68 magnetic sensor ensures precise detection of any door movement.

• Easy integration with other systems: Compatible with various alarm systems and access control systems, allowing you to build a comprehensive security setup.

• High reliability: Operates on a simple physical principle, making it less affected by environmental conditions and ensuring high reliability.

• Long lifespan: With a simple structure and no complex moving parts, wear and tear is minimized, extending the product’s lifespan.

• Energy-saving: Consumes power only when active, resulting in low energy usage and greater efficiency.

Applications

• Alarm systems: Detects intrusions and triggers alerts when doors open or close abnormally. If someone attempts to open a door without authorization, the magnetic sensor immediately detects the change in door status and sends a signal to the control panel. The alarm system will then activate sirens, warning lights, or send timely notifications to your phone.

• Building management: Monitors doors and windows to track entry and exit activities within the building, control who is allowed to enter or leave, and monitor the status of roller shutters.

Technical Specifications:
