Detection range: 150m, ideal for large areas.
False alarm prevention.
Adjustable angle: Horizontal ±90°, Vertical ±10°
Housing material: ABS plastic
Protection standard: IP55 (dust and water resistant)
Effective interference suppression: AGC circuit ensures stable operation in high-interference environments, guaranteeing accurate alarm signals.
SENGATE 4PH-150BQE Infrared Perimeter Fence Sensor – Leading Security Solution, Optimal Protection for Your Perimeter
The SENGATE 4PH-150BQE infrared perimeter fence sensor offers a wide detection range and all-weather durability, providing the perfect security solution for homes and businesses. Discover it now to safeguard your assets!

What is the SENGATE 4PH-150BQE Infrared Perimeter Fence Sensor?
Are you looking for an effective security solution to protect the area around your home or business? The SENGATE 4PH-150BQE infrared perimeter fence sensor is the perfect answer. This modern security device uses infrared beam technology to detect any intrusion into the protected area. With a wide detection range, high accuracy, and all-weather durability, the SENGATE 4PH-150BQE is an optimal choice for comprehensive security.
Why choose the SENGATE 4PH-150BQE sensor?
-
Comprehensive protection: Its wide operational range easily detects any external intrusion.
-
Minimized false alarms: Thanks to its multi-beam cutting mechanism, it accurately distinguishes between humans and objects.
-
High accuracy: Advanced infrared sensor technology ensures precise and timely detection.
-
Weather-resistant: Durable design withstands harsh weather conditions, ensuring stable operation over time.
Key features of the SENGATE 4PH-150BQE
-
Flexible detection range: Adjustable detection range to suit each installation site.
-
AGC technology: Automatically adjusts sensitivity based on environmental conditions.
-
Multiple beam frequencies: Prevents interference and ensures stable operation.
-
Fast response time: Detects and alerts promptly.
-
Durable design: Sturdy exterior, resistant to impact and environmental effects.
Applications of the SENGATE 4PH-150BQE sensor
-
Residential homes and villas: Protects the surrounding property, gardens, and parking areas.
-
Restaurants and hotels: Secures parking lots and storage areas.
-
Business premises: Safeguards warehouses, factories, perimeter fences, and critical areas.
-
Public areas: Parks, schools, hospitals, and other public spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SENGATE 4PH-150BQE |
| Detection Range | Outdoor: 150m, Indoor: 300m |
| Power Supply | 10.5V ~ 28VDC |
| Detection System | Infrared photobeam |
| Response Time | 500ms ~ 700ms |
| Alarm Output | Dry contact relay |
| Operating Temperature | -25°C to +55°C |

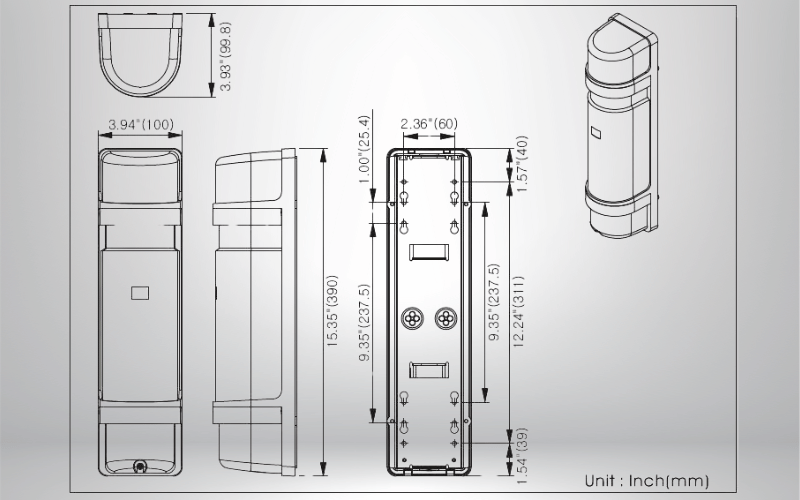

| Dimensions | W100H247D100mm |
| Weight | 1805g |
.png)
The SENGATE 4PH-150BQE infrared fence sensor is a reliable security solution that helps you protect your property and family effectively. With its outstanding features and high quality, this product is sure to satisfy even the most demanding customers.
