ShockTec Vibration Sensor – Detects the Smallest Abnormal Vibrations

The RISCO ShockTec RK600S00000B vibration sensor is one of the most advanced security solutions available today, designed to detect and prevent unauthorized intrusions through doors, windows, or other surfaces. This product not only features highly sensitive vibration detection but also integrates intelligent signal analysis technology to minimize false alarms, ensuring that your security system operates reliably and accurately.

Key Features of the ShockTec RK600S00000B Vibration Sensor

Intelligent Vibration Detection
The standout feature of ShockTec is its intelligent vibration detection capability. This sensor uses advanced digital signal processing technology to accurately distinguish between natural vibrations (such as wind or rain) and abnormal vibrations caused by intrusion attempts (like prying doors or breaking glass). This minimizes false alarms, preventing inconvenience for users and saving energy for the security system.

Multi-Layer Protection for Doors and Windows
Beyond vibration detection, ShockTec integrates magnetic contacts, creating a dual layer of protection for doors and windows. When a door or window is opened, the magnetic contact disconnects, triggering the alarm immediately. Additionally, the sensor can detect strong impacts such as smashing or prying, ensuring maximum security for your home.

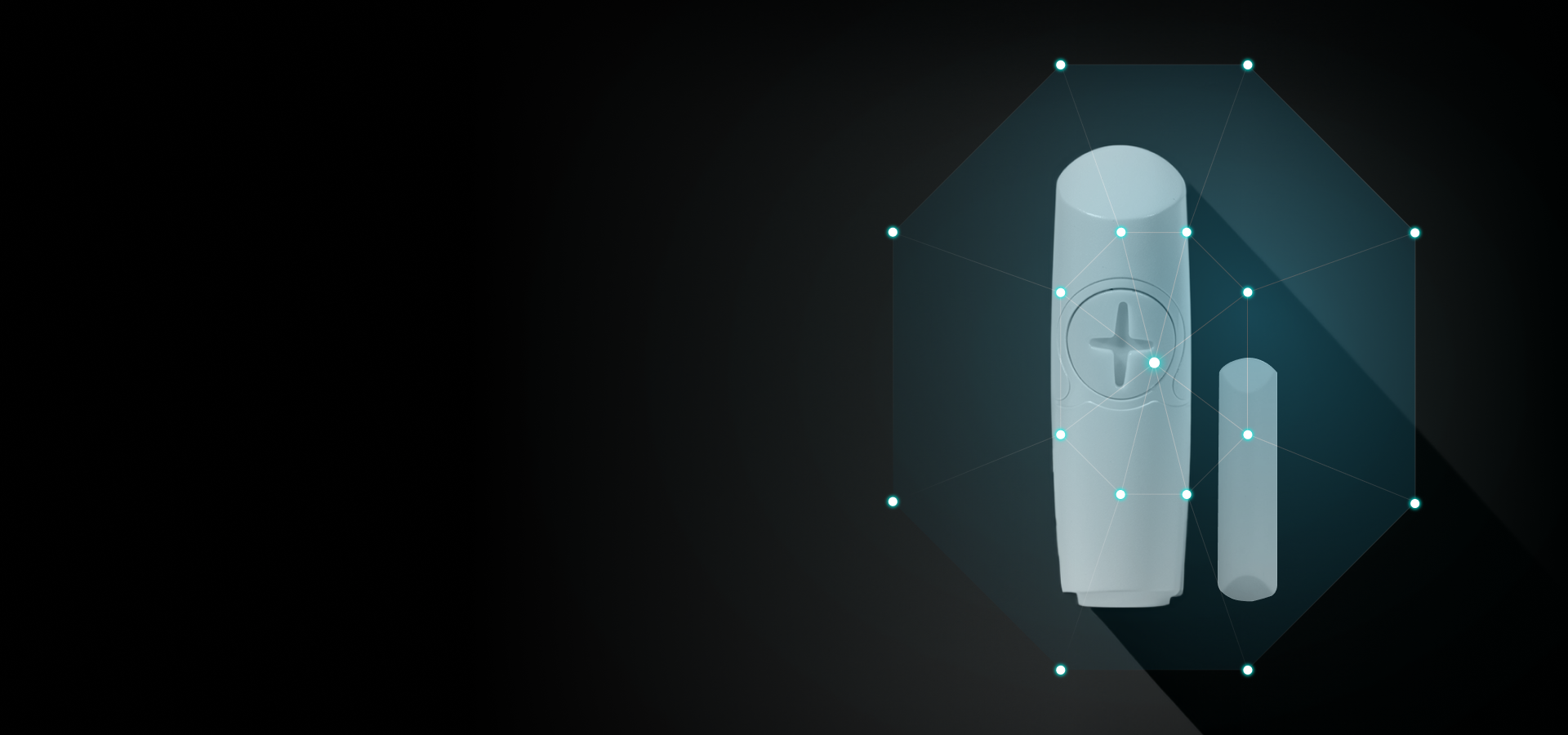

Gross Attack Detection – Tamper Resistance
Attempts to disable security systems using strong magnets or by interfering with magnetic contacts are common threats. The ShockTec sensor is equipped with gross attack detection. Any attempt to tamper with or disable the sensor will immediately trigger the alarm, preventing intruders from bypassing the system.

Intuitive LED Display for Easy Testing and Setup
The ShockTec sensor features a three-color LED to indicate operational status. Orange indicates the sensor is in high-sensitivity mode, green shows normal operation, and red signals low sensitivity. This feature allows users to easily check and adjust the sensor’s sensitivity to suit the specific installation environment.

Structure and Key Technologies of the ShockTec Sensor

Advanced Vibration Analysis Technology
ShockTec uses advanced vibration analysis technology based on a digital microprocessor, accurately distinguishing between natural vibrations and those caused by intrusion attempts, thereby minimizing false alarms.

Integrated Magnetic Contact
The sensor not only detects vibrations but also integrates a magnetic contact to monitor the open/closed status of doors or windows. When a door or window is opened, the magnetic contact disconnects, immediately triggering the alarm and providing a dual layer of protection for the security system.

Gross Attack Detection
The Gross Attack detection feature identifies strong impacts from intruders attempting to tamper with the sensor. If there is an attempt to disable the device using strong magnets or other means, the system instantly triggers the alarm, enhancing reliability and protection.

RF and Electrostatic Interference Protection
Equipped with RF and electrostatic interference protection, ShockTec can resist disruptions from radio waves or strong electromagnetic fields, ensuring the system remains unaffected by external interference.

Durable, Fire-Resistant Materials
The ShockTec sensor housing is made from fire-resistant ABS plastic, providing high durability and safety for use in harsh environments.

Applications of the ShockTec Sensor

Protecting Doors and Windows
ShockTec is an ideal solution for safeguarding doors and windows against intrusions such as prying or glass breaking. By detecting both vibrations and the open/closed status of doors, this device provides comprehensive protection for your home security system.

Monitoring Sensitive Areas
The ShockTec sensor can be installed in areas such as warehouse doors, storage rooms, or high-value spaces, helping to monitor and promptly prevent unwanted intrusion attempts.

Applications in Commercial Buildings and Offices
With its compact design and comprehensive protection features, ShockTec is a perfect choice for office buildings, shopping centers, and commercial establishments that require strict security measures.

Home Protection
For households, ShockTec offers effective protection for windows, doors, and other vulnerable areas, giving you peace of mind that your home is always secure.

With its compact and flexible design, the ShockTec sensor can be installed in a variety of locations such as windows, doors, walls, rooftops, or even ATMs. The device easily adapts to different spaces and security needs, providing optimal flexibility for users in designing a security system for homes or businesses.

The RISCO ShockTec RK600S00000B vibration sensor is an advanced security device featuring intelligent vibration detection, integrated magnetic contacts, and false alarm prevention technologies. It provides comprehensive protection for doors, windows, and sensitive areas while effectively preventing tampering attempts by intruders. With its compact design, flexible installation, and intuitive testing features, ShockTec is the perfect choice for both residential and commercial security systems.

Detailed Technical Specifications:

• Power Supply: 9V–16V DC

• Typical Current Consumption: 7.5 mA

• Operating Temperature: -20°C to 60°C

• Maximum Humidity: 95% non-condensing

• Sensitivity Adjustment: Two-level rotary switch (High/Low)

• Alarm Duration: 2.5 seconds

• Operating Mode: Any mode or First-to-Store mode

• Maximum Devices per Loop: 80 (Any mode) or 10 (First-to-Store mode)

• False Alarm Protection: Digital microprocessor signal processing and interference reduction

• Electrostatic Discharge Protection: No false alarms up to 8kV

• RF Immunity: 40 V/m from 80 MHz to 1 GHz

• Housing Material: Fire-resistant ABS plastic

• Dimensions: 25×28×95 mm (sensor), 10×12×58 mm (magnet)
