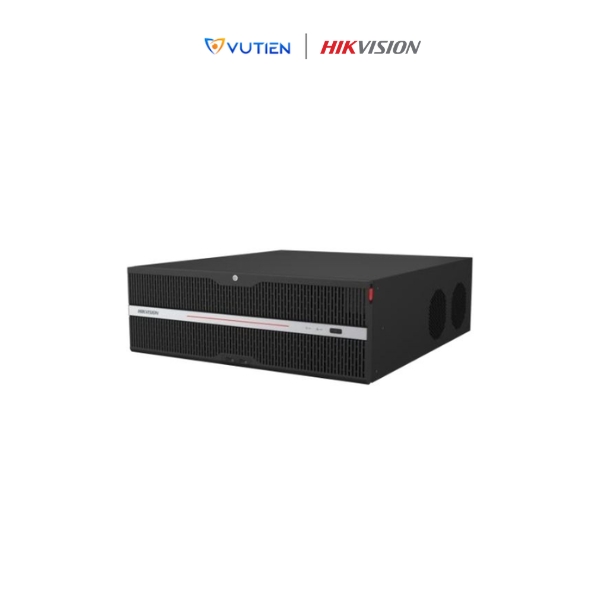

Hikvision DS-9664NTI-R16 is a high-end network video recorder (NVR) that supports up to 64 IP camera channels. It is designed for large-scale surveillance systems such as factories, shopping malls, smart urban areas, airports, and seaports. The product features AI integration, massive storage capacity, and video output up to 8K resolution.

Key Features

Powerful Performance

• Supports up to 64 IP cameras with a maximum resolution of 32MP

• Incoming bandwidth: 1280 Mbps; outgoing bandwidth: 1024 Mbps

• 4 self-adaptive RJ-45 network interfaces (10/100/1000/2500 Mbps)

• 16 SATA hard drive bays, supporting up to 20TB per drive, with eSATA expansion support

AI-Powered Intelligent Analytics

• Facial Recognition: Real-time face detection and comparison at up to 24 images per second, supporting up to 16 simultaneous channels.

• Face Library: Stores up to 64 face libraries with a total of 300,000 images and up to 10GB of storage capacity.

• AcuSearch: Advanced search functionality capable of tracking up to 345,600 targets per day.

• Structured Video Analysis: Identifies and categorizes objects such as people, vehicles, colors, and license plates.

• Smart Perimeter Protection: Includes features like ANPR (Automatic Number Plate Recognition), people counting, and upgraded Motion Detection 2.0.

Ultra-High Definition Imaging

• 4 HDMI Ports, including HDMI 3 supporting up to 8K resolution

• 2 VGA Ports with simultaneous video output

• 4 Flexible Output Modes to accommodate a variety of display scenarios

Powerful Recording and Decoding

• Supports H.265+/H.265/H.264+/H.264 video compression formats to save bandwidth and storage

• Maximum decoding capability: 32 channels @ 2MP or 2 channels @ 32MP

• Supports synchronous playback of up to 16 channels

Secure Storage with RAID

• Supports RAID modes 0, 1, 5, 6, and 10 to enhance data protection
• Supports N+M hot spare, minimizing the risk of data loss

Audio and Alarm Integration

• 2 RCA audio output channels, supporting two-way audio communication

• 32 alarm input ports / 16 alarm output ports, allowing integration with extended alarm systems

Key Specifications

• Supported IP Channels: 64

• Camera Resolution: Up to 32MP

• Bandwidth: 1280 Mbps (input) / 1024 Mbps (output)

• Video Output Ports: 3 HDMI (HDMI 3 supports 8K), 2 VGA

• RAID Support: RAID 0, 1, 5, 6, 10

• Storage: 16 SATA ports (up to 20TB per drive), eSATA expansion supported

• Network Interfaces: 4 auto-adaptive RJ-45 ports

• Video Compression: H.265+/H.265/H.264+/H.264

• Dimensions: 442 × 497 × 146 mm

• Power Supply: 100 ~ 240VAC, power consumption ≤ 100W (excluding HDDs)

• Operating Temperature: -10°C to 55°C

• Weight: ≤ 12kg (excluding HDDs)

• Certifications: CE, CB, RoHS, REACH, WEEE, UKCA, and more

Typical Applications

The Hikvision DS-9664NTI-R16 is ideal for deployment in professional surveillance projects, including:

• Factories and industrial zones

• Shopping malls and office buildings

• Smart cities, airports, and seaports

• Surveillance command centers, government facilities, and ITS (Intelligent Transportation Systems)

Conclusion

The Hikvision 64-Channel 3U 8K NVR | DS-9664NTI-R16 is an ideal solution for modern security surveillance systems that demand high performance, advanced AI analytics, secure storage, and ultra-clear image quality. It is a top-tier choice for large-scale projects requiring powerful processing capabilities and high reliability.

As a high-end network video recorder, the DS-9664NTI-R16 supports up to 64 IP camera channels and is perfectly suited for extensive surveillance deployments such as factories, shopping centers, smart cities, airports, and seaports. The device integrates AI technology, offers large storage capacity, and supports video output up to 8K resolution.

Key Features

Powerful Performance

• Supports up to 64 IP cameras with a maximum resolution of 32MP

• Incoming bandwidth: 1280 Mbps / Outgoing bandwidth: 1024 Mbps

• 4 RJ-45 network ports (10/100/1000/2500 Mbps auto-adaptive)

• 16 SATA hard drive bays, supporting up to 20TB per drive, with eSATA expansion available

AI-Powered Intelligent Analytics

• Face recognition with image comparison at 24 frames per second, supporting up to 16 simultaneous channels

• Face library with up to 64 databases, supporting up to 300,000 images and 10GB total storage

• AcuSearch for intelligent search of up to 345,600 targets per day

• Structured video analysis: detection and classification of objects such as people, vehicles, colors, and license plates

• Perimeter protection, ANPR (Automatic Number Plate Recognition), people counting, and Motion Detection 2.0

Ultra-High Definition Imaging

• 4 HDMI ports, with HDMI 3 supporting resolutions up to 8K

• 2 VGA ports supporting simultaneous video output

• 4 flexible video output modes suitable for various application scenarios

Powerful Recording and Decoding

• Supports H.265+/H.265/H.264+/H.264 video compression for bandwidth and storage efficiency

• Decoding capability: up to 32 channels @ 2MP or 2 channels @ 32MP

• Supports synchronous playback of up to 16 channels

Secure Storage with RAID

• Supports RAID modes 0, 1, 5, 6, and 10 for enhanced data security

• N+M hot spare support to minimize the risk of data loss

Audio and Alarm Integration

• 2 RCA audio output channels with two-way audio support

• 32 alarm input / 16 alarm output ports, supporting integration with extended alarm systems

Key Specifications

• IP Camera Channels: Up to 64

• Camera Resolution: Up to 32MP

• Bandwidth: 1280 Mbps input / 1024 Mbps output

• Video Output: 3 HDMI ports (HDMI 3 supports 8K), 2 VGA ports

• RAID Modes: RAID 0, 1, 5, 6, 10

• Storage: 16 SATA bays (up to 20TB per drive), eSATA expansion supported

• Network: 4 auto-adaptive RJ-45 ports

• Video Compression: H.265+/H.265/H.264+/H.264

• Dimensions: 442 × 497 × 146 mm

• Power Supply: 100 ~ 240VAC, ≤ 100W (excluding HDDs)

• Operating Temperature: -10°C to 55°C

• Weight: ≤ 12kg (excluding HDDs)

• Certifications: CE, CB, RoHS, REACH, WEEE, UKCA, and morePractical Applications

The Hikvision DS-9664NTI-R16 is ideally suited for professional surveillance deployments such as:

• Factories and industrial parks

• Shopping malls and office buildings

• Smart cities, airports, and seaports

• Monitoring command centers, government facilities, and intelligent transportation systems (ITS)

Conclusion

The Hikvision 64-Channel 3U 8K NVR | DS-9664NTI-R16 is a top-tier solution for modern security surveillance systems that require high performance, intelligent analytics, secure data storage, and ultra-high-definition image quality. It is the preferred choice for large-scale projects that demand powerful processing capabilities and high reliability.

Contact us now for expert consultation and the best pricing for your project.
