Security System Installation for DHL Vinh Long Warehouse

In just 14 days, Vũ Tiến successfully completed the installation of a comprehensive security system for the DHL Vinh Long warehouse, located in Binh Minh Industrial Park. This project delivered a fully integrated solution tailored to the client’s specific needs.

1. Client Requirements

To enhance warehouse safety, the client requested the deployment of a comprehensive security solution, including:

• CCTV System: Using 2MP and 4MP Hikvision cameras, data storage for at least 90 days with RAID 5, UPS backup, and monitoring screens in the office that support live view, zoom-in/out, and easy playback.

• Alarm System: 24/7 monitoring for rolling doors and emergency exits, rooftop and storage area surveillance, equipped with false alarm-resistant sensors, sirens, strobe lights, and notification via calls and SMS in case of intrusion.

• Access Control System: Applied to the main entrance and server room, integrated with in/out readers and door-left-open alarms to ensure absolute security.

2. Client Challenges

The client previously encountered several issues with a former service provider:

• Poor installation quality that failed to meet technical specifications

• Lack of responsibility in warranty and maintenance services

• Unprofessional consultation, offering non-optimized solutions

3. Vũ Tiến’s Solution

Vũ Tiến conducted an in-depth site survey and implemented a comprehensive solution to maximize system performance.

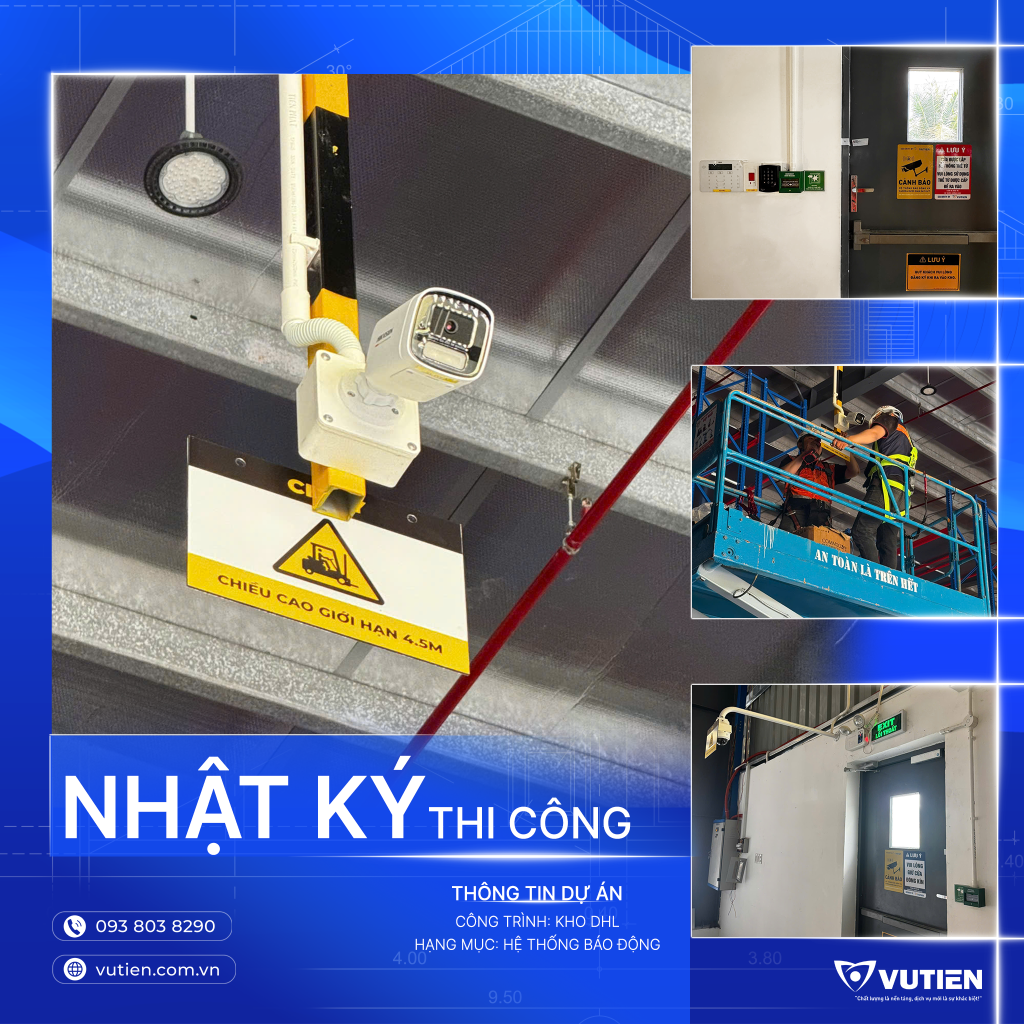

3.1 CCTV System

• Strategic camera placement to cover all critical zones

• Hikvision 2MP and 4MP cameras: Clear and high-resolution video; 4MP Full Color cameras used in low-light areas to capture color images at night

• RAID 5 storage: Configured with 5 x 16TB hard drives, ensuring data retention for at least 90 days

• Scodeno & Cisco POE Switches: Ensure stable data transmission

Key equipment used:

• Hikvision 64CH 8HDD NVR with RAID 5 support

• 2MP Dome Camera with 2.8mm Lens (Hikvision)

• 4MP Full Color Bullet Camera (Hikvision)

• Scodeno 16-port & 24-port POE switches

• Cisco 16-port Core Switch

3.2 Alarm System

• Rolling Doors: Monitored with Sengate Taiwan shutter sensors

• Emergency and Entry Doors: Equipped with Sengate magnetic sensors with 24/7 alert capability

• 60m Beam Sensors: Detect intrusion across perimeter lines

• False alarm-resistant infrared sensors: Coverage up to 15m for accurate detection

• Emergency Panic Buttons: Allow staff to respond to critical situations

• 110dB Outdoor Siren with Strobe Light: Instantly alerts in the event of unauthorized access

• SIM-based Notification Module: Uses 4G SIM to make calls and send SMS alerts to management during incidents

Key equipment used:

• RISCO Alarm Control Panel and Expansion Boards

• RISCO PIR Sensors and 4G SIM Module

• RISCO Keypad

• Sengate Magnetic, Shutter, Beam Sensors, and Panic Buttons

3.3 Access Control System

• Soyal Taiwan Readers: Installed at the main entrance and server room

• Card Authentication: Only authorized personnel are granted access

• Door-Open Timeout Alerts: System triggers an audible alarm if the door remains open too long

• Role-Based Access Control: Access rights are assigned based on employee roles, securing sensitive zones

4. Solution Advantages

• Dual-layer Integrated Security: Combining CCTV, alarm, and access control for comprehensive protection

• Efficient Security Management: Prevents intrusion and enables real-time monitoring inside and outside the facility

• Smart System with Instant Alerts: Quickly detects and responds to abnormal events

• Safe Data Storage: RAID 5 architecture ensures secure and reliable video data retention

• Peace of Mind for Clients: Professional system design protects both assets and operations

Results & Client Feedback

The client highly praised Vũ Tiến’s professionalism and dedication throughout the implementation process. The system now operates smoothly and reliably, giving the client complete peace of mind in terms of security and asset protection.

Through this project, Vũ Tiến demonstrated its capability to deliver a fully integrated security solution, using modern equipment, professional installation, and responsive after-sales support—ensuring the client’s people and property are protected at the highest level.

Thank you DHL Vinh Long for your trust and partnership! If you’re seeking a reliable partner for integrated security systems, contact Vũ Tiến today.
